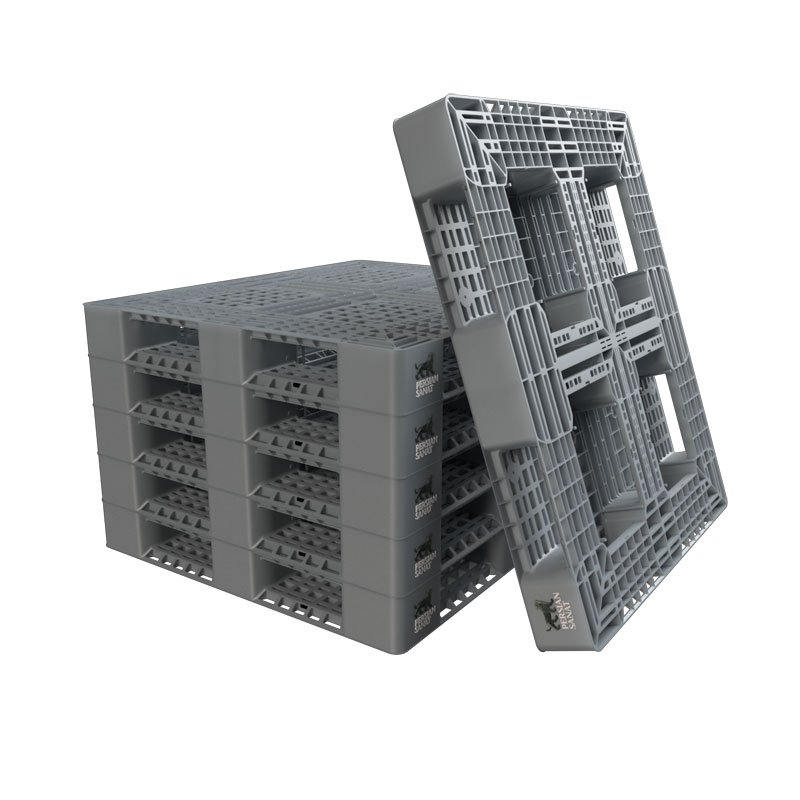

Persian Sanat Petrochemical Standard PS2

Persian Pallet

PS2

This pallet is designed to be used especially in the petrochemical and chemical industries and it is compatible with any logistical challenges that minimize the risk of product damage. The design of the back of this pallet is connected 6 runners, which facilitates its movement on the conveyor. This pallet is much lighter than its wooden counterparts and as a result, it facilitates logistics operations of warehousing and transportation.

Additional information

Dimension	1300x1100x150 mm
Pallet Type	PetrochemicaSatndard
Weight	5000 kg
Static Load	5000 kg
Dynamic Load	1250 kg
Loading Q’ty Ix40’ft HC	320 Pcs
Material	HDPE

Technical Specifications

Resistant against Humidity, enviromental pollutions, chemical acid & corrosives
With anti-slip rubber pallets
Ability to print customer logo on the product
Productivity in all standard colors
Temperature tolerance – 20 to + 40 ° C
compatible with hand jack, fork lift, reach truck

Options:

Rim options: –
Integration of RFID transponders
Logo option: Print & Embossed

پالت پلاستیکی / پرشین صنعت plastic pallet / persian sanat

Technical Data

Name

Previous Name

Art No.

Material

NW* (kg)

Bottom type

Dimension (mm)

Temperature (°C)

SL (kg)

DL (kg)

RL (kg)

RP**

Loading Quantities

Surface type

Logo option

Jumbo truck

Container 40 HC

PS2

IPL1311/6R-2

PS-1311-PS2

HDPE

15.5

1300x1100x150

-20 To +40

5000

1250

300

–

374

320

open

Yes

NW: Net Weight SL: Static Load DL: Dynamic Load RL: Racking Load RP: Reinforcement Profiles

Technical Drawing

Loading Quantities (pcs/approx.)

Jumbo Truck	Container 40 HC
374 (pcs/approx.)	320 (pcs/approx.)

Labelling Options

Logo type

Insert/Cliché Size

(mm)

Long Side (corners)

Insert/Cliché

(mm)

Short Side (corners)

Insert/Cliché

(mm)

Middle Leg

Print Option

Embossed Option

–

150 x 120

150 x 80

✔
