ES1

ES1

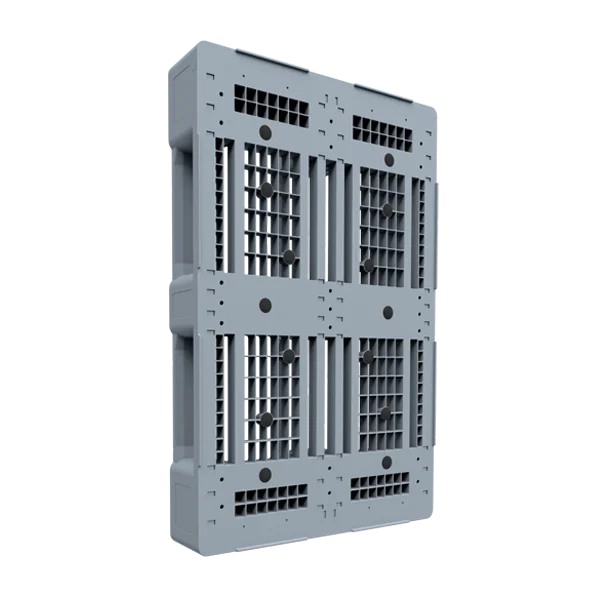

A Monoblock euro pallet with three integrated runners which is light weight but it is capable of bearing heavy loads in high rack system. It is an ideal pallet for automatic conveyor systems due to its dimension and precise design. this type of pallet with integrated reinforcement profiles is an ideal pallet in the heavy duty category. Its strength and durability makes it suitable for high racking systems and automated process. It is suitable to be used in the distribution network of non-food environments, e.g., in intra-logistics processes, automotive industry and retailers.

Additional information

Dimension

1200x800x150 mm

Pallet Type

Euro Standard

Weight

12 ± 0.5 kg

Static Load

3 – 5 Ton

Dynamic Load

1000 kg

Racking Load

400 kg

Loading Q’ty Ix40’ft HC

550 Pcs

Material

Polyethylene

Technical Specifications

  • Resistant against Humidity,enviromental pollutions, chemical acid & corrosives
  • Anti-slip surface
  • Ability to print customer logo on the product
  • Productivity in all standard colors
  • Temperature tolerance – 25 to + 45 ° C
  • compatible with hand jack,fork lift, reach truck
  • Suitable for automatic shuttle racking and conveyor system
Name Previous
Name
Art
No.
Material NW.
(kg)
Bottom
Type
Dimension
(mm)
Temperature
(Co)
SL
(kg)
DL
(kg)
RL
(kg)
RP.. Loading Quentin. steno Logo

Type

Logo

option

Jumbo
Truck
Container
40 HC
ES1 IPL1208/3R PS-1208-ES1 HDPE 12 3R 1200x800x150 -20 To +40 5000 1000 400 700 550 Open Option
IPL1208/3R/4P PS-1208-ES1-4P HDPE 16.5 3R 1200x800x150 -20 To +40 5000 1500 1250 4 700 550 Open Yes
IPL1208/3R/6P PS-1208-ES1-6,P HDPE 18.5 3R 1200x800x150 -20 To +40 5000 1750 1500 6 700 550 Open Yes



Jumbo Truck Container 40 HC
700 (pcs/approx.) 550 (pcs/approx.)
Logo type Insert/Cliché Size (mm) Long Side (corners) Insert/Cliché (mm) Short Side (corners) Insert/Cliché (mm) Middle Leg
Print Option Embossed Option 115x 90 105x 65 60x 90
