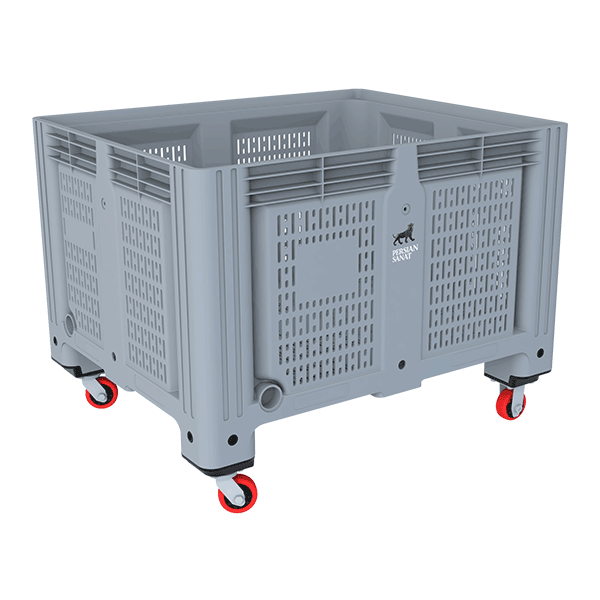

You do not always have to carry fully packaged products. High volume pallet boxes are known as an ideal solution for safe storage and convenient transportation of products such as vegetables, fresh and dried fruits, nuts and small parts or bulk goods. They are primarily used in the food industry, agriculture or industrial production. Another advantage is that they adapt very well to automatic transmission systems. The material used to manufacture this type of pallet box is food-grade.

Additional information

Dimension

1200x1000x770 mm

Box Type

Solid Walls

Weight

34 ± 0.5 kg

Static Load

4500 kg

Dynamic Load

500 kg

Loading Q’ty Ix40’ft HC

84 Pcs

Material

HDPE

Technical Specifications

  • The loading and maintenance products for health, safety, fast and easy
  • Water-resistant, environmental pollutants, corrosive chemicals
  • Long life in comparison with steel Box pallets
  • Environmentally in comparison with Wooden Box pallets
  • Curved corners to prevent slip-column layout
  • Temperature tolerance – 20 to + 40 ° C
  • Ability to use of forklifts, Reach track and hand jack
  • Ability to print customer logo on the product
  •  Productivity in all standard colors






Name







Art
No.



Material





NW. (kg)





Bottom
Type





Dimension
(mm)



Inside Dimension (mm)





Temperature
(Co))





SL
(kg)





DL
(kg)







RL (kg)





Capacity (L)

 Loading Quantity Type Logo option
Jumbo
Truck
Container
40 HC
BP4-4L PS-1210-BP4-4L HDPE 34 4L (SNAP-ON) 1200×1000×770 1120 x920 x615 -20 To +40 4500 500 670 104 84 bottom and wall perforated Yes
BP4-8L PS-1210- BP4-8L HDPE 36.5 8L (SNAP-ON) 1200×1000×770 1120 x920 x615 -20 To +40 4500 500 670 104 84 bottom and wall perforated Yes
BP4-2R PS-1210- BP4-2R HDPE 37 2R(SNAP-ON) 1200×1000×790 1120 x920 x615 -20 To +40 4500 500 500 670 104 84 bottom and wall perforated Yes
BP4-3R PS-1210- BP4-3R HDPE 40 3R (SNAP-ON) 1200×1000×790 1120 x920 x615 -20 To +40 4500 500 500 670 104 84 bottom and wall perforated Yes



NW: Net Weight           SL: Static Load          DL: Dynamic Load        RL: Racking Load          C: Capacity

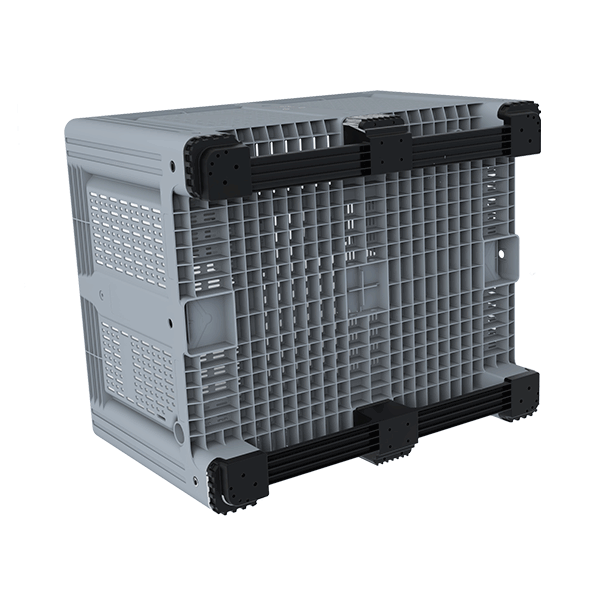

BP4-2R

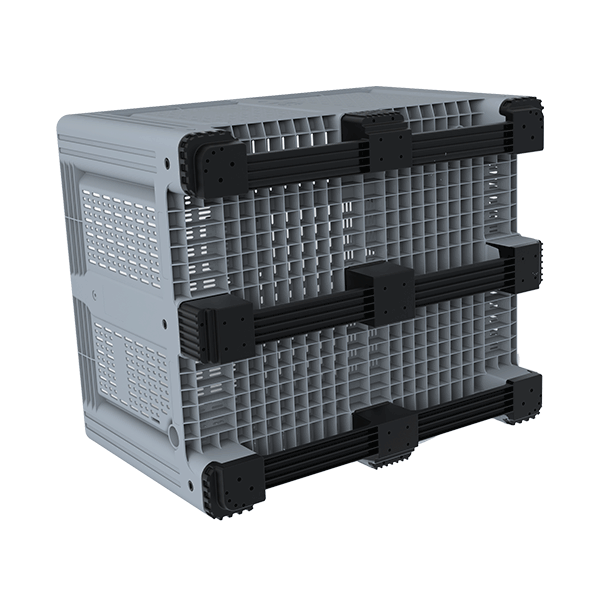

BP4-3R

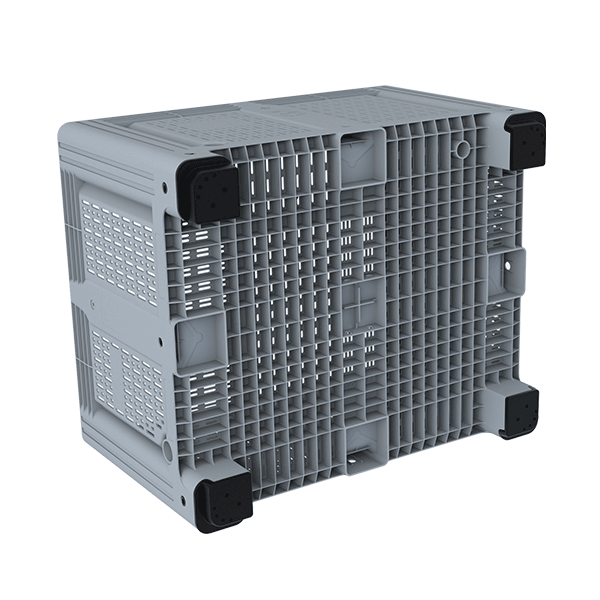

BP4-4L


BP4-8L

Jumbo Truck  Container 40 HC
104 (pcs/approx.) 84 (pcs/approx.)
 Logo type

Insert/Cliché (mm) Long Side of Pallet Box



Print Option  Embossed Option

88 x 128
