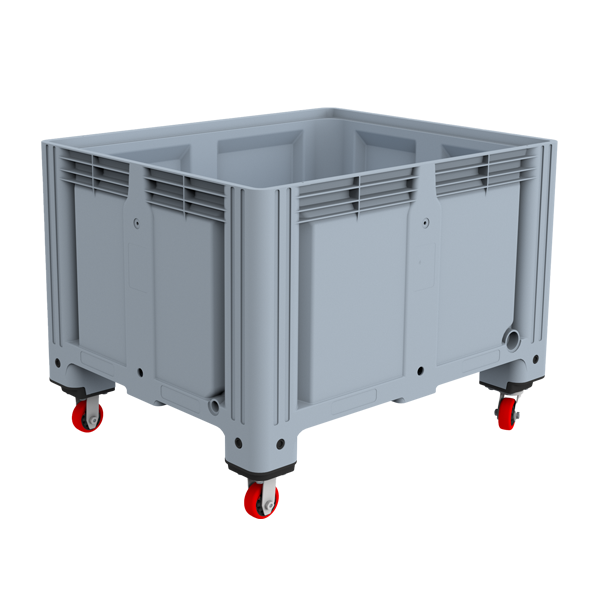

BP3

Persian Box

You do not always have to carry fully packaged products. High volume pallet boxes are known as an ideal solution for safe storage and convenient transportation of products such as vegetables, fresh and dried fruits, nuts and small parts or bulk goods. They are primarily used in the food industry, agriculture or industrial production.

Another advantage is that they adapt very well to automatic transmission systems.The material used to manufacture this type of pallet box is food-grade.

Additional information

Dimension	1200x1000x770 mm
Box Type	Solid Walls
Weight	0.5 ± 36 kg
Static Load	4500 kg
Dynamic Load	500 kg
Loading Q’ty Ix40’ft HC	84 Pcs
Material	HDPE

Technical Specifications

The loading and maintenance products for health, safety, fast and easy
Water-resistant, environmental pollutants, corrosive chemicals
Long life in comparison with steel Box pallets
Environmentally in comparison with Wooden Box pallets
Curved corners to prevent slip-column layout
Temperature tolerance – 20 to + 40 ° C
Ability to use of forklifts, Reach track and hand jack
Ability to print customer logo on the product
Productivity in all standard colors

Technical Data

Name	Art No.	Material	NW. (kg)	Bottom Type	Dimension (mm)	Inside Dimension (mm)	Temperature (C^o))	SL (kg)	DL (kg)	RL (kg)	Capacity (L)
BP3-4L	PS-1210-BP3-4L	HDPE	36	4L	1200×1000×770	1120 x920 x615	-20 To +40	4500	500	–	670
BP3-8L	PS-1210-BP3-8L	HDPE	38.5	8L	1200×1000×770	1120 x920 x615	-20 To +40	4500	500	–	670
BP3-2R	PS-1210-BP3-2R	HDPE	39	2R	1200×1000×790	1120 x920 x615	-20 To +40	4500	500	500	670
BP3-3R	PS-1210-BP3-3R	HDPE	42	3R	1200×1000×790	1120 x920 x615	-20 To +40	4500	500	500	670

Loading Quantity		Surface Type	Logo option
Jumbo Truck	Container 40 HC	Surface Type	Logo option
104	84	Closed	Yes
104	84	Closed	Yes
104	84	Closed	Yes
104	84	Closed	Yes
