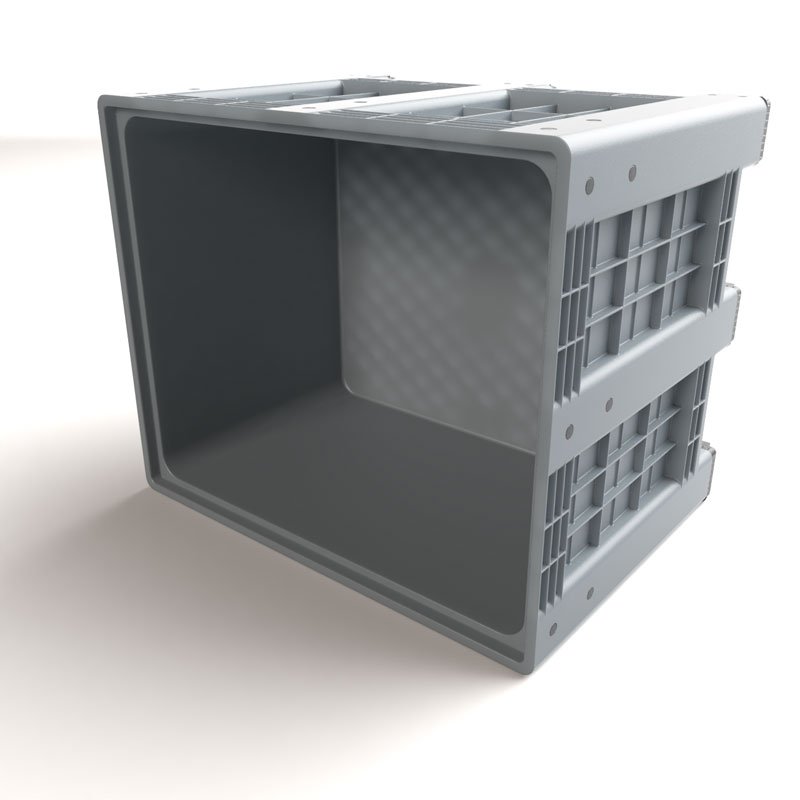

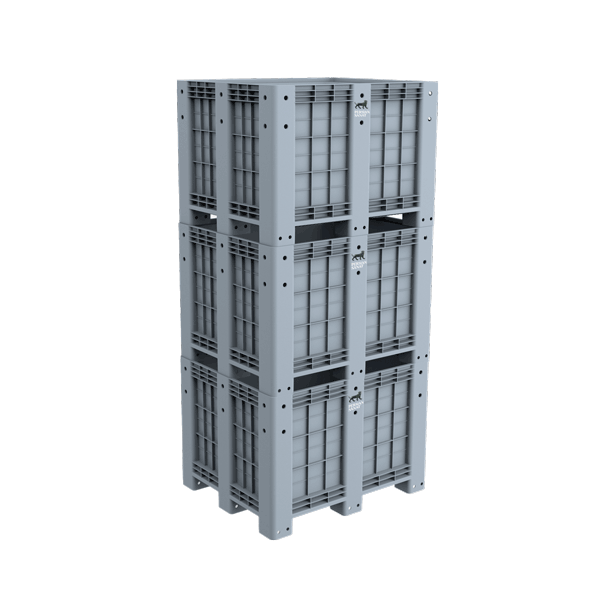

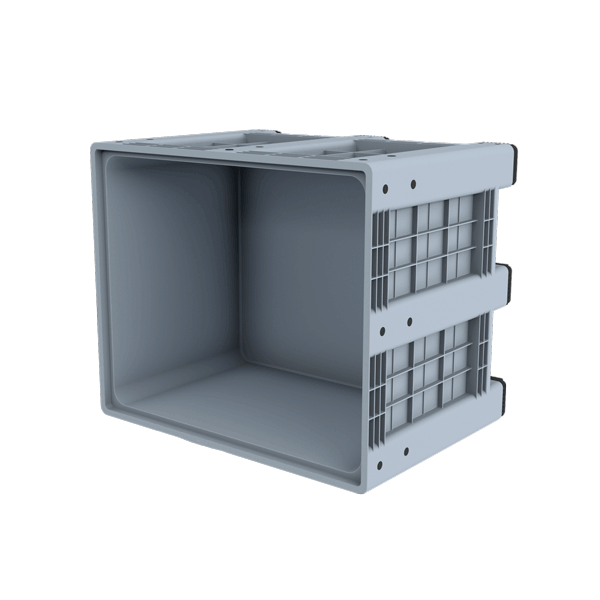

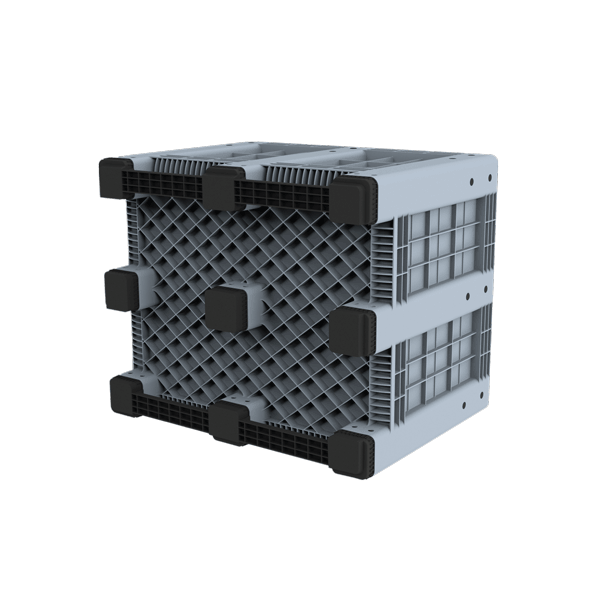

You do not always have to carry fully packaged products. High volume pallet boxes are known as an ideal solution for safe storage and convenient transportation of products such as vegetables, fresh and dried fruits, nuts and small parts or bulk goods. They are primarily used in the food industry, agriculture or industrial production. Another advantage is that they adapt very well to automatic transmission systems.

Additional information


1200x1000x915 mm

Box Type

Solid Walls

Static Load

3 – 5 Ton

Dynamic Load

1000 kg

Racking Load

1000 kg

Loading Q’ty Ix40’ft HC

84 Pcs



Technical Specifications

  • The loading and maintenance products for health, safety, fast and easy
  • Ability to use of forklifts, Rich track and hand jack
  • Curved corners to prevent slip-column layout
  • Environmentally in comparison with Wooden Box pallets
  • Long life in comparison with steel Box pallets
  • Very low weight in comparison with steel Box pallets
  • Washable and disinfection
  • Water-resistant, environmental pollutants, corrosive chemicals
  • The ability to produce in different colors
  • Tolerance temperature of -40 to +60 degrees C.


  • Rim options: –
  • Integration of RFID transponders
  • Logo option: Print & Embossed
Category Name Previous Name Art No. Metrial NW* (kg) Bottom type Dimension (mm) Inside Dimension (mm) Temperature (co) DL (kg) RL (kg) C** (lit) SL*** (kg) Loading Quantities Wall type Logo option
Jumbo truck Container 40 HC
Box pallet BP1-2R


PS-1210-BP1-2R HDPE 44.5 2R(SNAP ON) 1200x1000x915 1110x900x700 -20 To +40 1000 1000 700 5000 104 84 Solid walls Yes


NW: Net Weight            SL: Static Load             DL: Dynamic Load          RL: Racking Load            C: Capacity

Jumbo Truck Container 40 HC
104 (pcs/approx.) 84 (pcs/approx.)
Logo type Insert/Cliché Size (mm) Long Side (corners) Insert/Cliché (mm) Short Side (corners) Insert/Cliché (mm) Middle Leg
Print Option Embossed Option 80×70
